Undercarriage System

Crawler/Undercarriage Shoes

Overview

Bradken crawler shoes are supported by Bradken’s patented ‘Pillar of Strength’ which provides greater structural integrity to prevent crushing of the roller path as the crawler shoes wear, maximising shoe life.

We are one of the largest manufacturers of crawler and undercarriage systems for mining machines over 200T. Over the past 25 years, we’ve manufactured and supplied more than 200,000 crawler shoes for mining customers worldwide.
By focusing on our customers’ undercarriage requirements we are able to offer effective, site specific solutions, that provide superior performance with minimal maintenance.
Our unique induction hardening processes achieve greater case depth than competitor products, resulting in greater wear life of these components. Our proprietary, through-hardened alloy, offers an alternative unique to Bradken undercarriage products, prolonging shoe life in systems that have sufficient space for interconnecting parts to wear. Finally, all Bradken undercarriage designs are optimised to maximise wear face contact areas, minimising contact pressure and reducing the detrimental effect of abrasive wear.
Hydraulic Excavator
Bradken’s range of Hydraulic Excavator crawler shoes offer significant advantages over traditional designs.
  • Hitachi® Hydraulic Excavator
EX2500/EX2600, EX3600, EX5500/EX5600, EX8000
  • Komatsu® Hydraulic Excavator
PC3000, PC4000, PC5500, PC7000, PC8000
  • Catapillar® Hydraulic Excavator
6030/RH120E, 6040/RH170, 6050/RH200, 6060/RH340, 6090/RH400
  • Liebherr Hydraulic Excavator
R996B and R9800

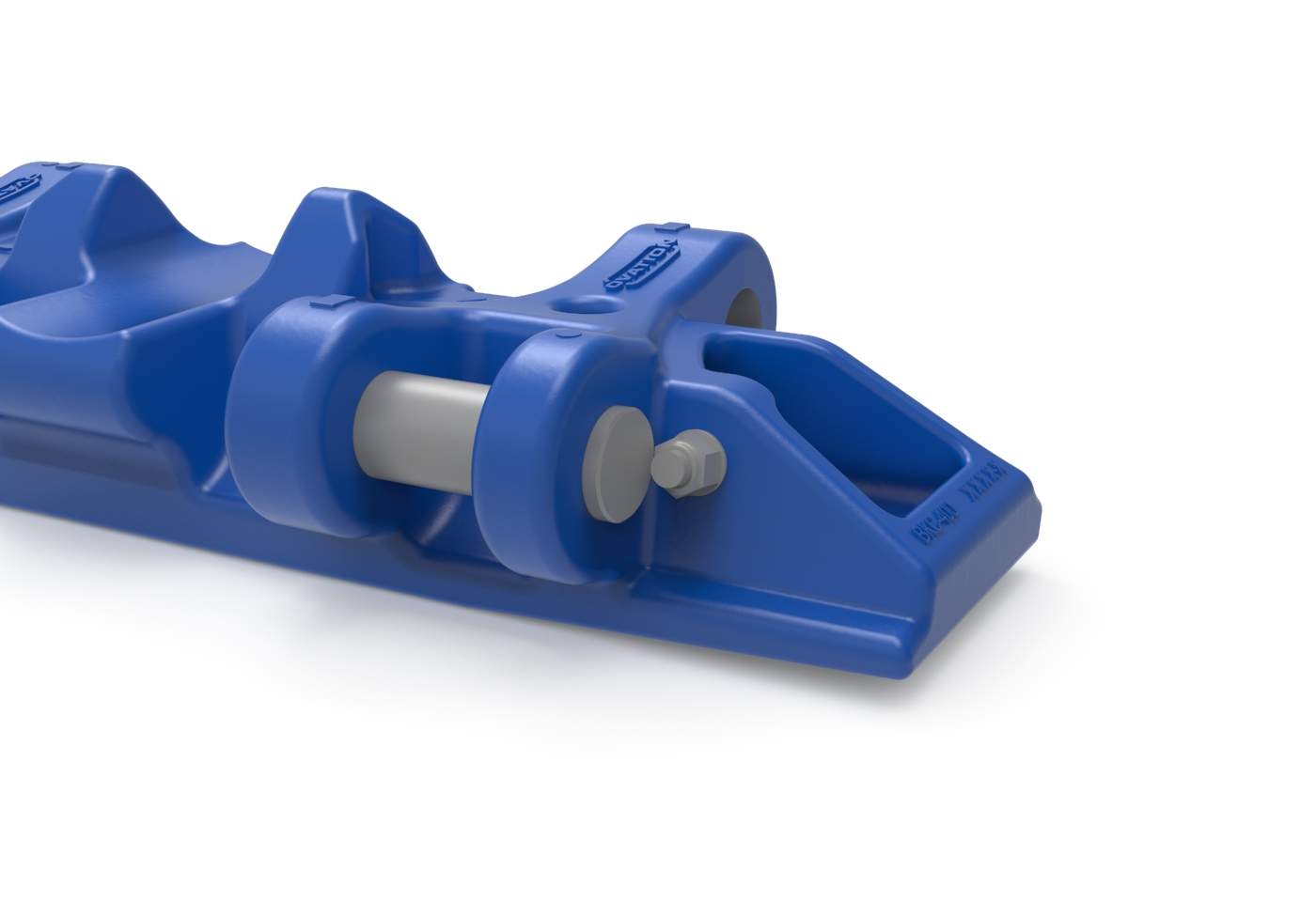

Hydraulic Excavator Crawler Shoes

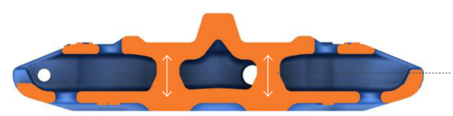

Hydraulic Excavator Crawler Shoes - Section View

Hydraulic Excavator Crawler Shoes - Section View

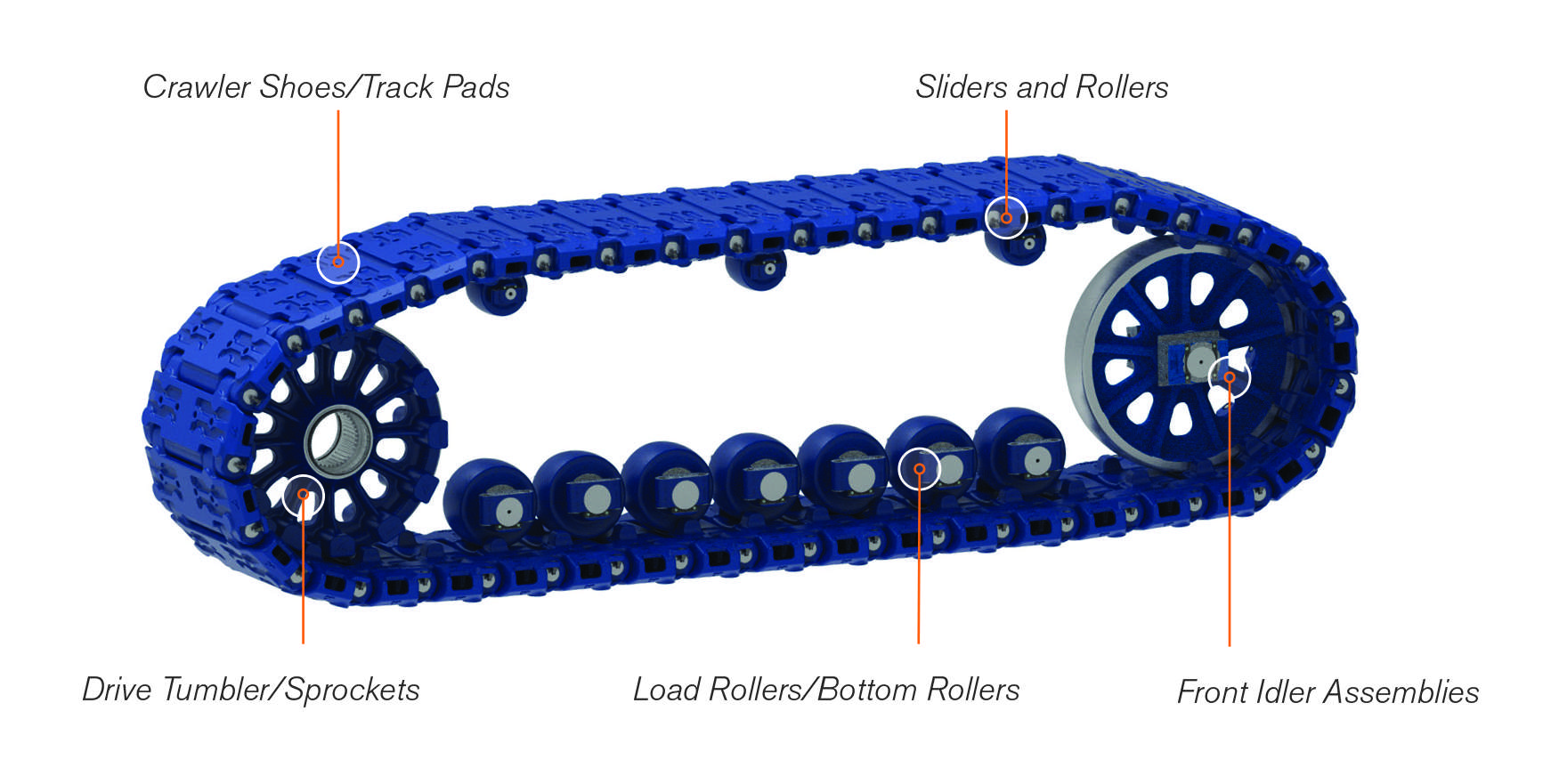

Hydraulic Excavator Crawler System

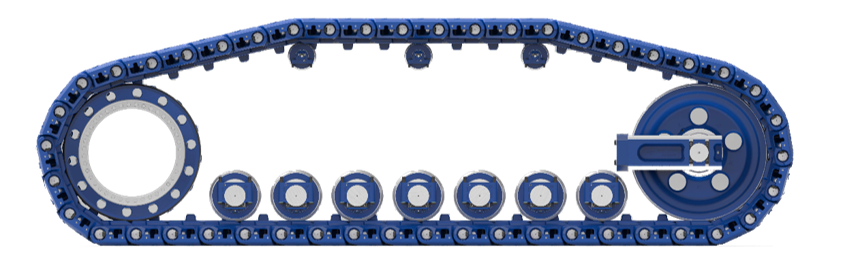

Hydraulic Excavator Crawler System

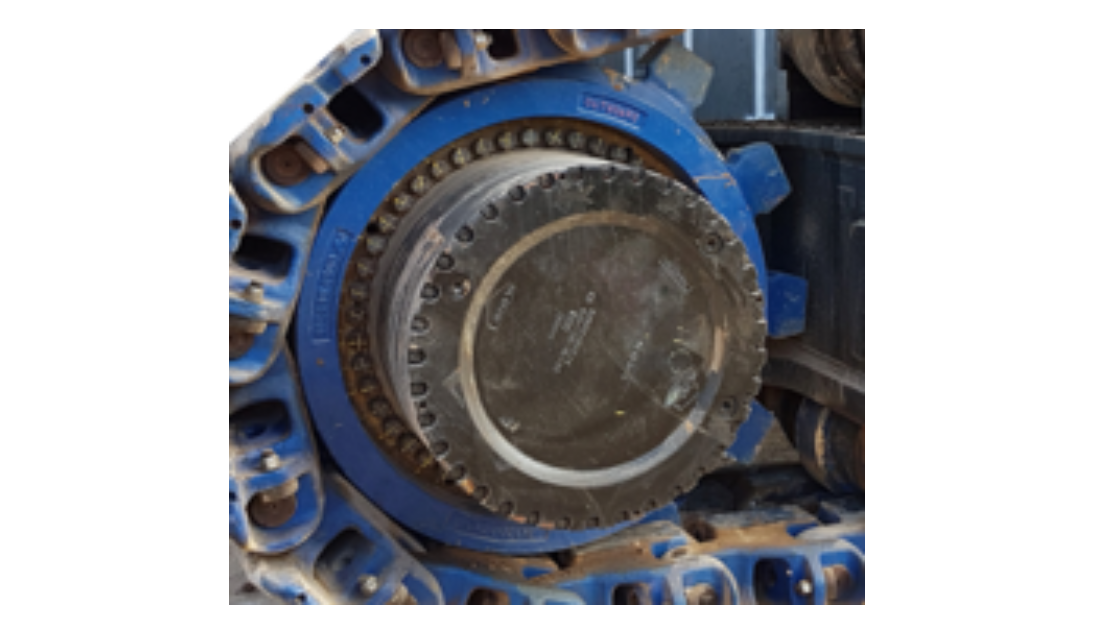

Hydraulic Excavator Crawler

Hydraulic Excavator Crawler

Electric Rope Shovel Crawler Shoes
Bradken’s electric rope shovel range of crawler shoes and undercarriage components was developed to provide improved performance for the following machines:
  • P&H® Electric Rope Shovel
2800A, 2800XPA, 2800XPB, 2800XPC­, 4100A, 4100C, 4100XPB,
4100XPC, 4100WRP, 4100BOSS,4100DELTA
  • Caterpillar® Electric Rope Shovel
7295/BE295, 7495/BE495, 7495HD, 7495HR, 7495HF, BE495

Electric Rope Crawler Shoes

Electric Rope Crawler Shoes

Electric Rope Crawler Shoes

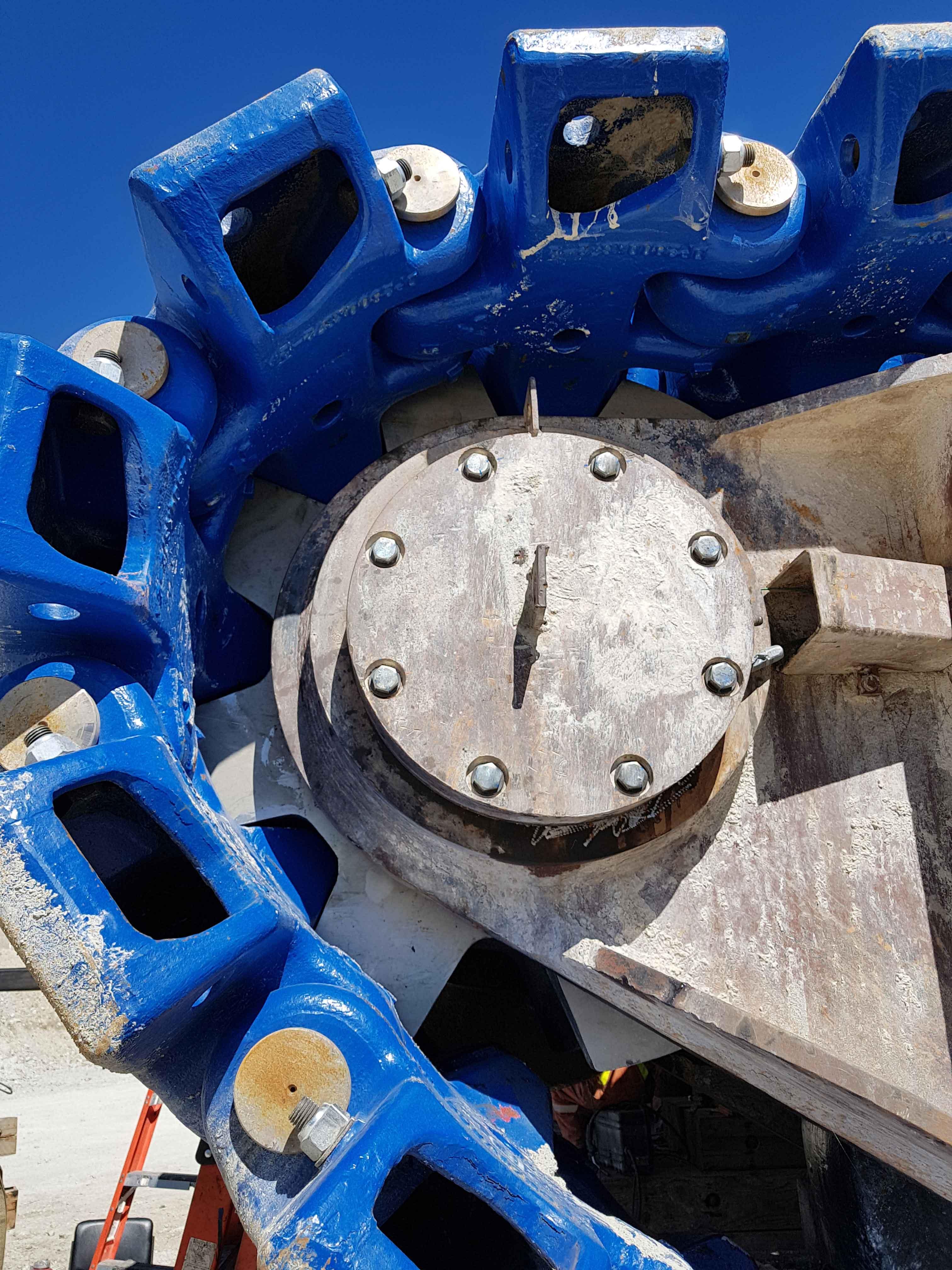

Electric Rope Crawler Onsite

Machine Availablity
High toughness connecting pins are manufactured from induction hardened NiCrMo steel, resulting in reduced pin failures and unscheduled downtime thus increasing machine availability.
Over the years, mine operations have experienced unscheduled downtime that is related to failure of connecting pins and hardware – even leading to crawler shoe failure. Bradken has applied the same design review principles to these aspects of our products ensuring there is no “Weakest Link”.
Reliability
Bradken ERS crawler shoes feature either induction hardened alloy or austenitic manganese steel providing superior wear resistance and increased service life for any mining application. State of the art design, materials selection and manufacturing processes equate to dependable performance. Even in the worn condition, our shoes are designed to incorporate superior factors of safety, so that overload failure is less likely. This gives users confidence to change parts on condition rather than hours alone.
