Weld Overlay Plate

Duaplate® D80

Overview

Duaplate® D80 is a chromium carbide weld overlay used in the Fixed Plant industry. The manufacturing process of Duaplate®, along with the microstructure and chemical composition, give D80 its superior properties. D80 performs well under very high impact and very severe abrasive environments. Large sheets or custom shapes of Duaplate® D80 are available and can be formed into complex shapes.

The D80 overlay material is a complex chromium carbide weld overlay that is based on AS2576-2455. The microstructure of this material consists of primary M7C3 carbides in a complex carbide austenite matrix. The toughness of the material is improved by the formation of nodular complex carbides leading to a reduction in the size of acicular M7C3 type carbides and inter-carbide spacing.
Manufacture
Duaplate® is manufactured by welding an abrasion resistant material to a mild steel base. A chromium rich powder is fused to the base plate, creating a bi-metallic material with high abrasion resistance whilst still retaining ductility allowing forming and welding. Multiple overlay and backing plate thickness options are available.
Composition
Extra alloying elements help to give Duaplate® D80 its superior properties. Typical chemical composition is given below:
Carbon

3.0% – 4.5%

Silicon

0.8% – 2.5%

Manganese

1.5% – 3.2%

Chromium

25%–35%

Nb/Mo/Ti/V/W

Up to 5%

Iron

Balance

Microstructure
A D80 microstructure consists of fine, primary M7C3 carbides surrounded by a eutectic mixture of carbides and austenitic matrix material. The very hard primary carbides form as hexagonal nodules and help to prevent wear of the hardfacing material whilst providing superior impact resistance than Duaplate D60. The austenitic matrix material provides mechanical support to the primary carbides whilst also helping to absorb impact.
Bulk Hardness

620–680 HV50

Carbide Hardness

1100–1600 HV0.3

Volume Fraction of Carbides

~30%

Density

7850 kg/m3

Used on :
  • Bin & Hopper Liners
  • Chute Liners
  • Deflector Plates
  • Vibrating Feeders
  • Mobile Equipment
  • Grizzly bars

Duaplate® D80 Weld Overlay

Duaplate® D80 Weld Overlay manufacturing

Duaplate® D80 Weld Overlay Manufacturing Process

Duaplate® D80 Weld Overlay Microstructure

Duaplate® D80 Weld Overlay Microstructure

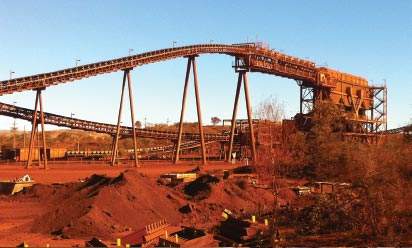

Duaplate® D80 Weld Overlay Application

Duaplate® D80 Weld Overlay Application
