Ceramic Composites

Vulcabrix A92

Overview

Bradken’s Vulcabrix A92 ceramic is ideal for applications where severe abrasion resistance is required. Vulcabrix A92 consists of high-quality Armic ^TM^ A92 tiles bonded to a steel backing plate with natural rubber. Vulcabrix A92 offers better abrasion and impact resistance when compared to typical Alumina ceramics in the market.

Features

Along with excellent abrasion resistance Vulcabrix A92 ceramics are less than half the density of conventional metallic lining materials, allowing thicker wear materials to be used in weight critical applications. The light weight material also aids in manual handling of liners during installation.
As well as welded studs for quick and easy attachment, Vulcabrix A92 offers custom shapes, bevels and edge protection.

Manufacture

A high quality, 92% alumina powder is pressed into the shape of the finished tile before being sintered into a solid body. Sintering occurs at temperatures in the range of 1400-1600°C and binds the alumina particles to each other. These tiles are then bonded to the backing plate with rubber through a precise pressing and heating cycle. The liner can then be used to create a liner package perfect for severe abrasive wear applications involving low to moderate impact.
Hardness

≥1080 HV20

Open Porosity

<0.1%

Ceramic Density

3650 kg/m3

Rubber Hardness

60 Shore A

Tile Thickness

100mm & 50mm

Liner Thickness

112mm & 63mm

Vulcabrix A92 and ZTA

Vulcabrix A92 and ZTA

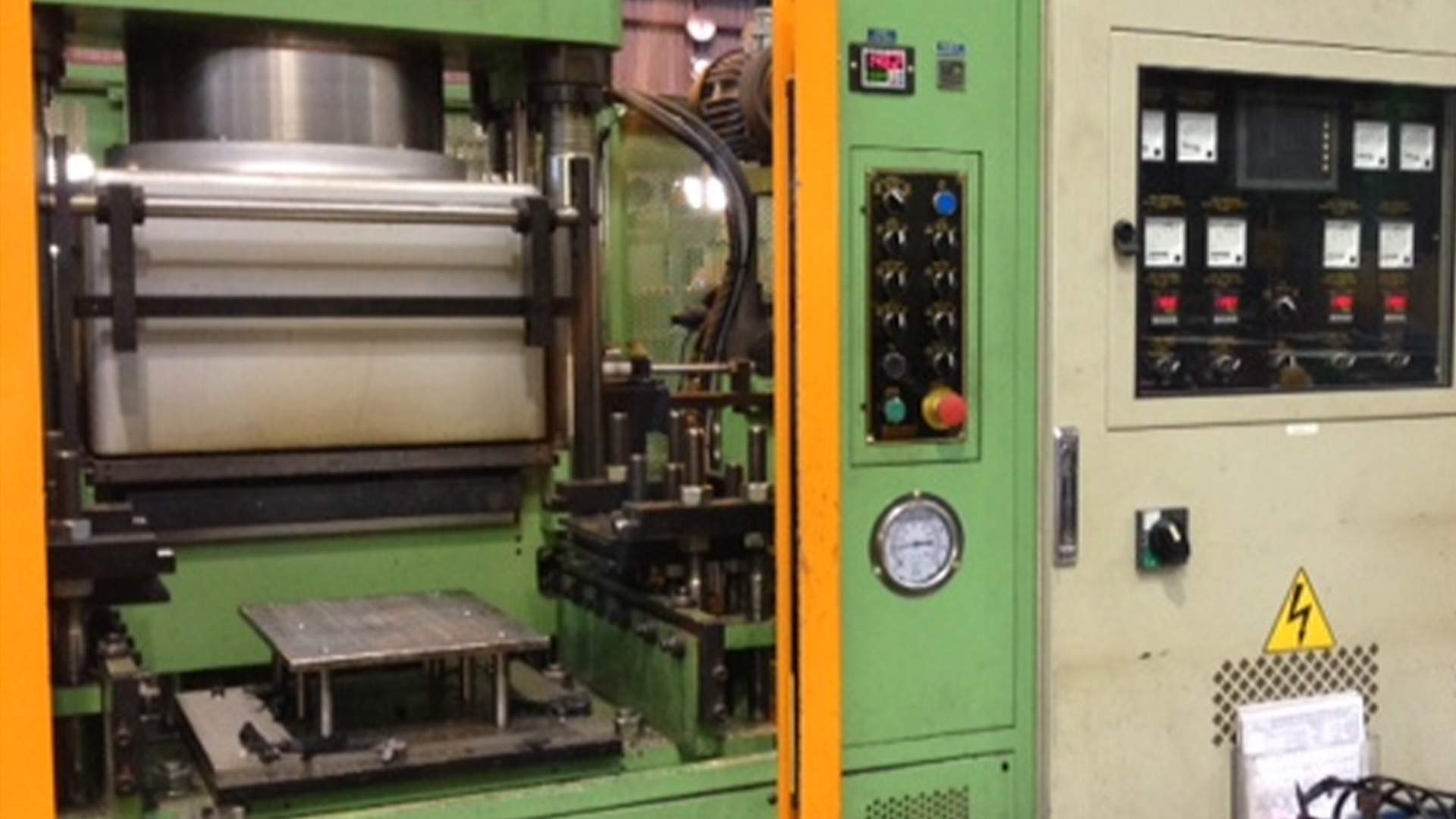

Vulcabrix A92 Manufacturing

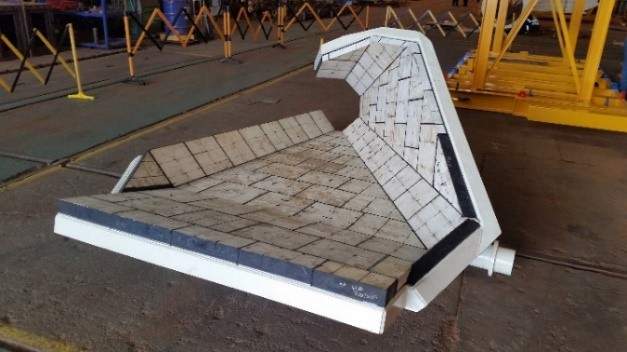

Lined Chute Segment

Liner Composition

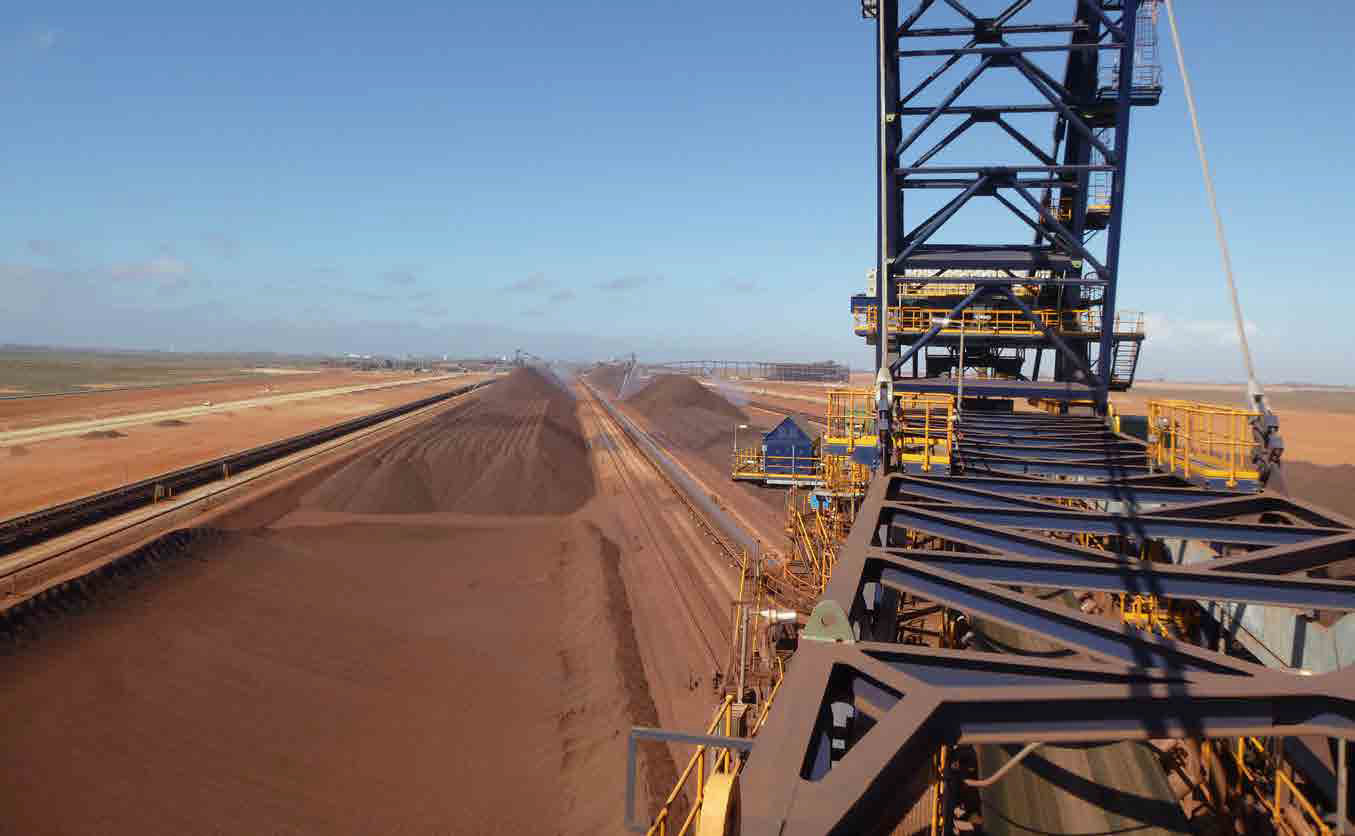

Bradken's Vulcabrix®: Optimum Ore Handling

Bradken's Vulcabrix® Ceramic Liners revamped the Coarse Ore Tripper, boosting production to 68,000stpd. With an innovative modular design and improved discharge, liner change-outs extended from 6 weeks to over 104 weeks, saving costs. We enhanced safety with reduced manual handling and dust generation.
