Wear Piping

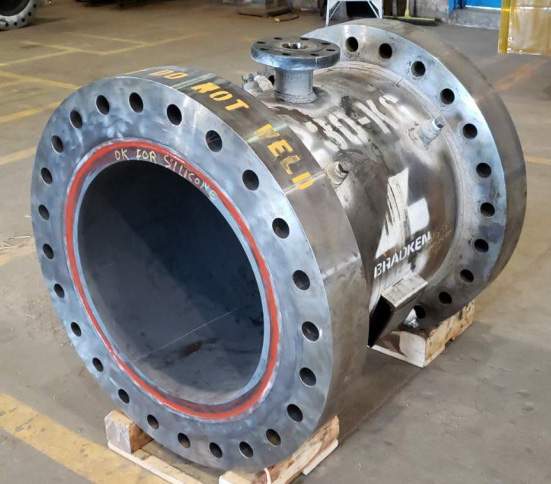

High Chrome White Iron Piping

High Chrome White Iron Piping is a superior solution for protecting slurry piping systems against sliding abrasion and impact wear. Bradken's high-quality CWI liners are casted to ASTM A532 and meet the specification requirements of Oil Sands Producers. Compared to non-metallic liners, CWI is excellent for impact wear resistance due to the large, sharp particles. In addition to wear resistance, CWI offers excellent corrosion resistance. These spools can be configured as straights, bends, nozzles, wyes, and expansion barrels with sizes ranging from NPS 10 up to NPS 36+.

The Purpose of CWI includes:
  • Superior wear resistance in abrasion-prone environments.
  • Enhanced corrosion resistance in harsh chemical conditions.
  • Extended service life for reduced maintenance costs.
  • Improved efficiency and productivity in mining operations.
  • Customizable designs for various applications.

High Chrome White Iron Piping

High Chrome White Iron Piping

Features

  • Customizable wear liner thickness (32-50+ mm).

  • Fully replaceable wear liner.

  • Customizable chemistry and heat treat parameters.

  • Optional built-in wear sensor.

High Chrome White Iron Piping

Advantages

  • Strategically placed wear material in high wear areas.

  • Worn liners can be rotated or replaced, especially at the leading/trailing edge of the spool; recycled.

  • Ability to tune abrasion resistance, toughness, and corrosion resistance.

High Chrome White Iron Piping

Benefits

  • Decreased frequency of shutdowns required for equipment maintenance.

  • Decreased costs and increased sustainability by reusing fabricated pipe spool.

  • Increased wear performance for specific applications or environments.

  • Remote condition monitoring.
