Fixed Plant Wear Solutions

Vulcabrix® ZTA Rubber Vulcanised Ceramic

Overview

Bradken’s Vulcabrix ZTA ceramic is ideal for applications where extreme abrasion resistance is required. Vulcabrix ZTA combines extreme abrasion resistance with increased impact resistance to create a wear liner for harsh environments. The zirconia toughened alumina tiles are bonded to a steel backing plate with natural rubber to create the ideal wear liner. Vulcabrix ZTA offers better abrasion and impact resistance when compared to alumina products in the market.

Features

The zirconia toughened alumina tiles used to create Vulcabrix ZTA give these wear liners increase resistance to cracking when compared to conventional alumina tile based liners. The ZTA liners also offer improvements in weight management due to their lower density than metallic liners. As well as welded studs for quick and easy attachment, Vulcabrix ZTA offers custom shapes, bevels and edge protection.

Manufacture

An alumina powder is blended with zirconia powder at a precise ratio before the tile is pressed into the desired shape. The zirconia addition gives the tile increased impact resistance when compared to typical alumina tiles. After pressing the powder into a mould, sintering at 1500-1600°C binds the powder particles together creating a solid tile. The tiles are then attached to a steel backing plate using controlled heating and pressing, rubber vulcanization process cycle. The rubber provides cushioning to the tiles whilst allowing for the flexibility of attachment methods to the backing plate. The liner is then ready for post processing and use in extremely abrasive environments involving moderate to high impact.

Typical Properties

Hardness

≥1300 HV20

Open Porosity

<0.1%

Ceramic Density

4200 kg/m3

Rubber Hardness

60 Shore A

Tile Thickness

100mm, 50mm & 25mm

Liner Thickness

112mm, 63mm, 37mm & 32mm

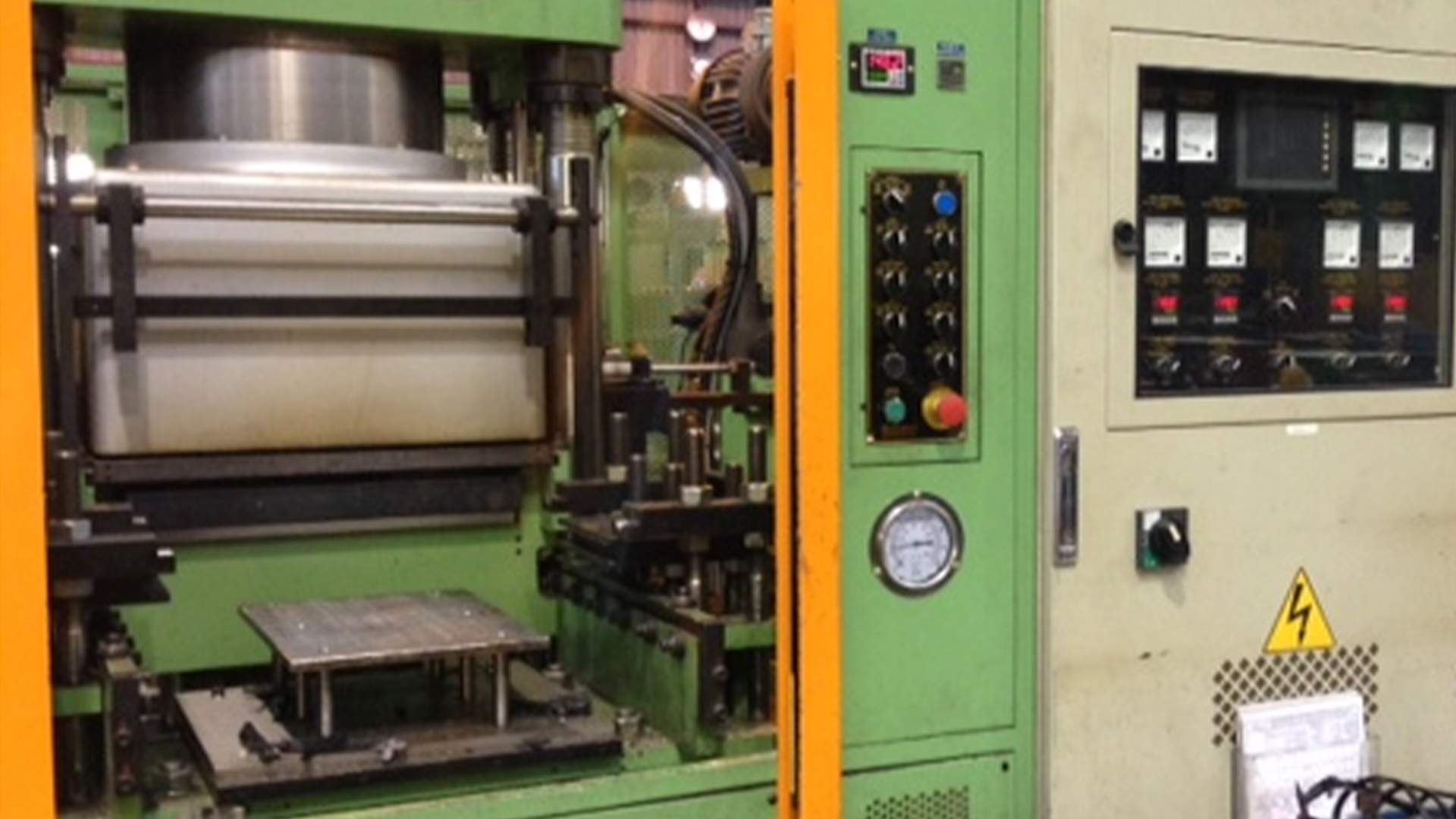

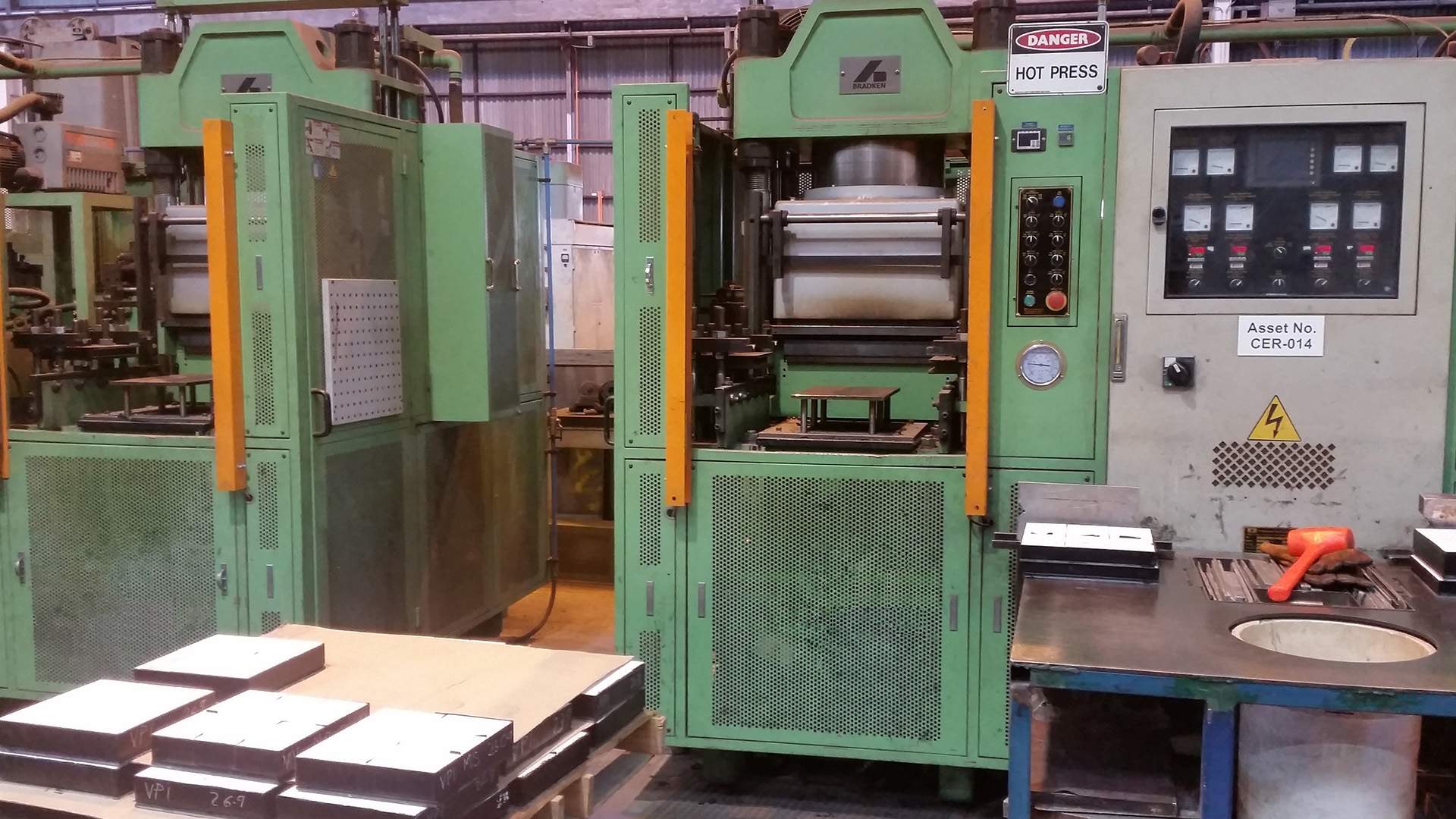

Vulcabrix A92 Press

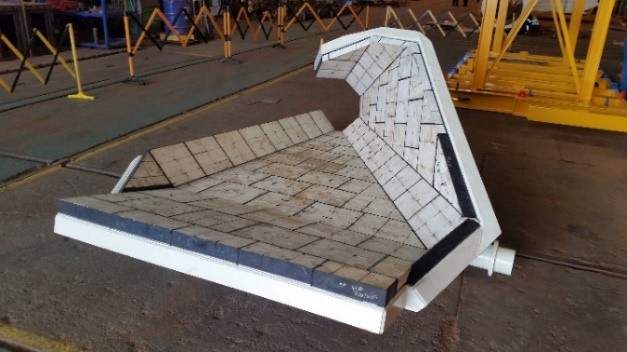

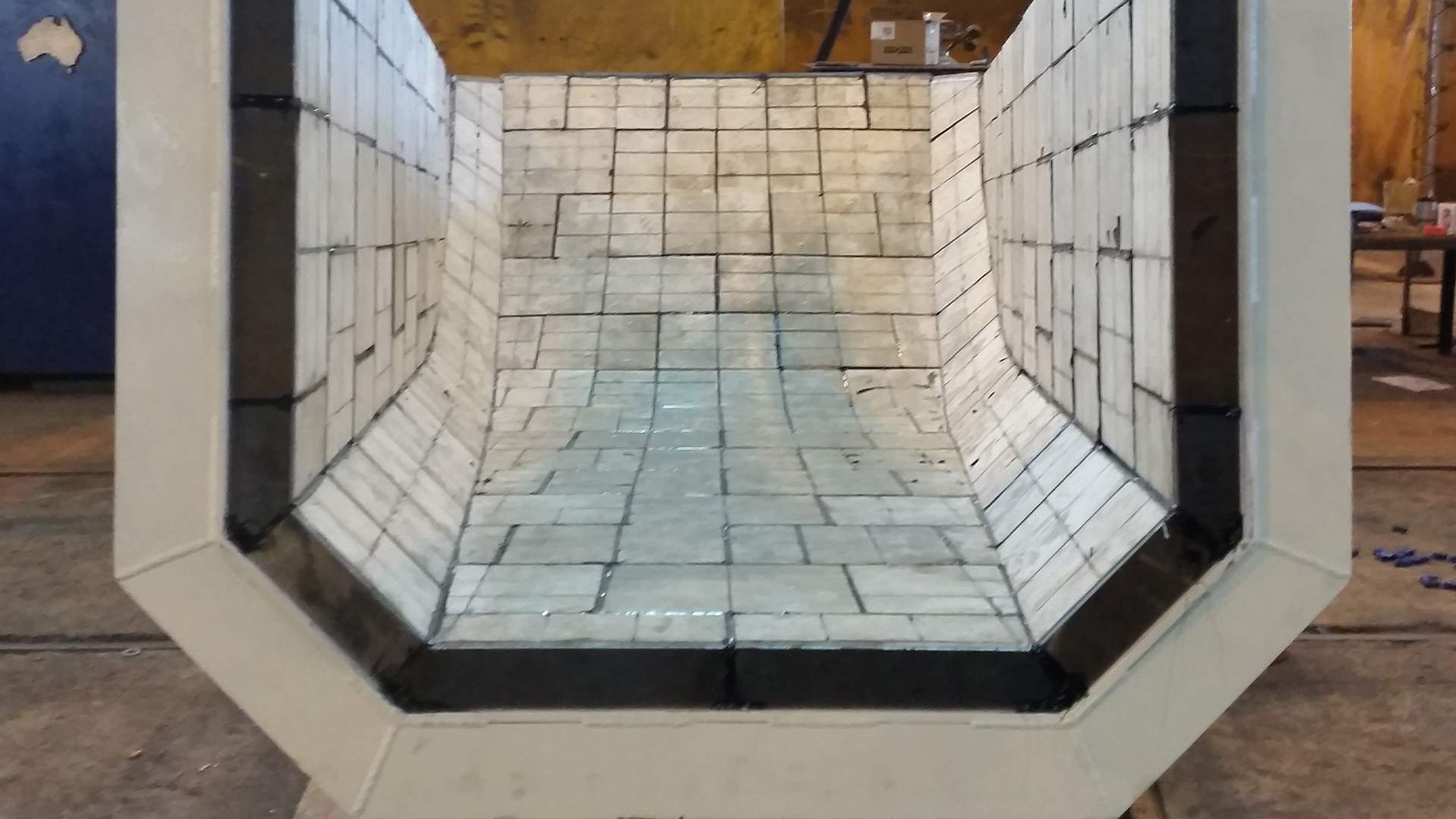

Transfer Chute Application

Vulcabrix A92 Microstructure

Vulcabrix® ZTA Ceramic Liners Extend Service Life in Ore Processing

A gold and copper mine in South West Region, WA, sought to prolong wear liner lifespan on their Flash Float Floor. Bradken's Vulcabrix® ZTA Ceramic Liners surpassed expectations, lasting 50 weeks with over 50% of their initial service life remaining. This represents a 285% increase compared to previous liners, saving costs and enhancing safety.
