MillSafe^® Worn Liner Removal With RME INSIDEOUT^™ Technology

Bradken’s MillSafe Worn Liner Removal with RME INSIDEOUT™ Technology removes worn liners from the mill shell wall directly to provide a safer and more efficient liner removal process.

MillSafe® Worn Liner Removal With RME INSIDEOUT™ Technology

Worn Liner Removal System:

Bradken® have customised grinding mill liners in collaboration with Russell Mineral Equipment (RME) to offer a range of innovative Worn Liner Removal tools to suit your grinding mill. The system allows the removal of all liner types directly from the mill shell wall using uniquely designed tools matched to suit the worn liner profile at the end of liner life.

The Worn Liner Removal Tools remove people from the hazardous task of chaining up the worn liners once they have fallen from the mill shell wall. This previous method placed mill reline crew in confined spaces, on uneven surfaces, near mobile equipment, and beneath suspended liners that can shift unexpectedly.

In addition, this removal method prevents worn liners from falling and damaging the newly installed liners below, and improves reline efficiency.

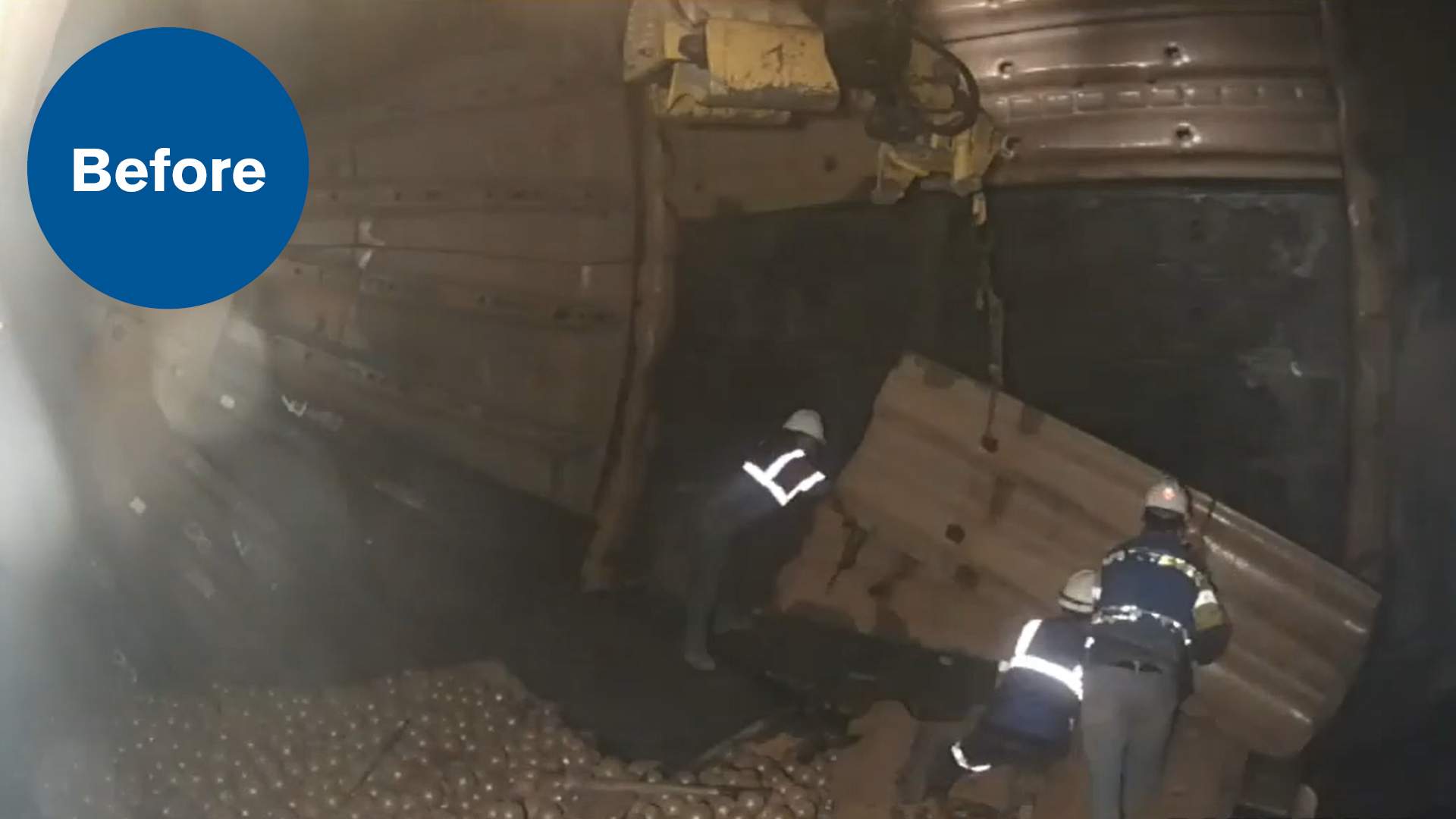

Conventional Liner Removal

Mill Relining Machine (MRM) operator and crew working in hazardous zones inside the mill removing ‘knocked-in’ liners using chain and slings.

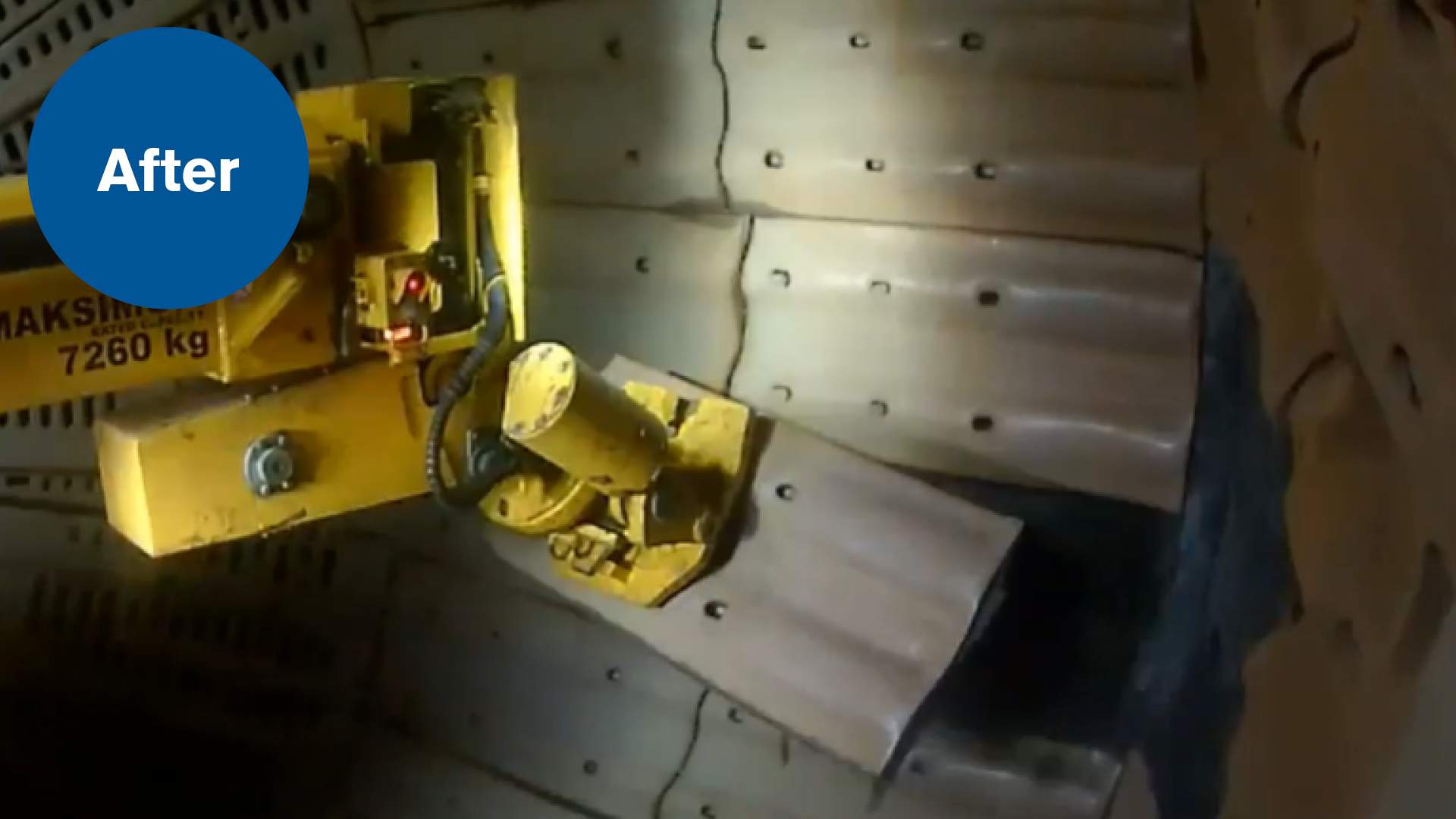

Semi-Automated Liner Removal

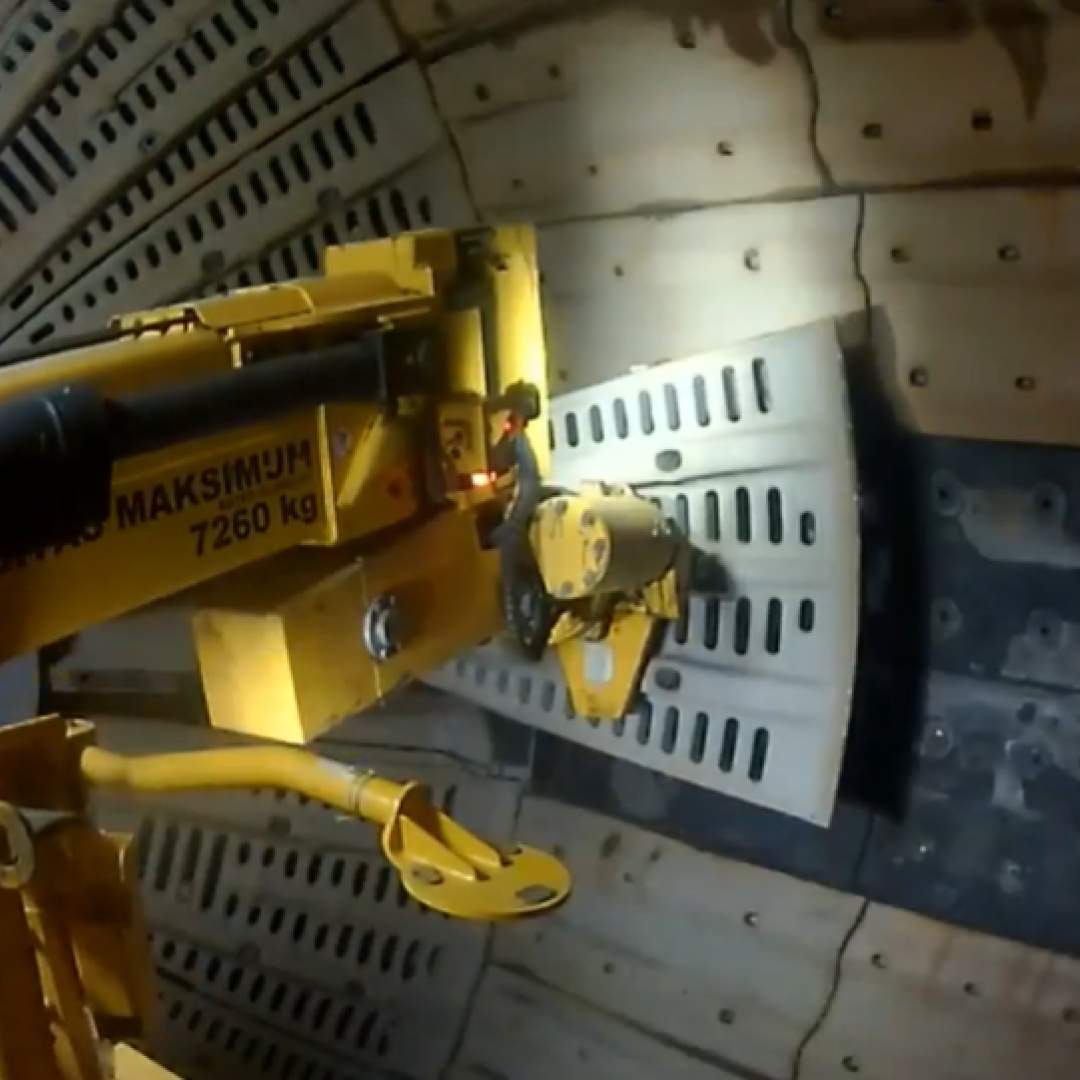

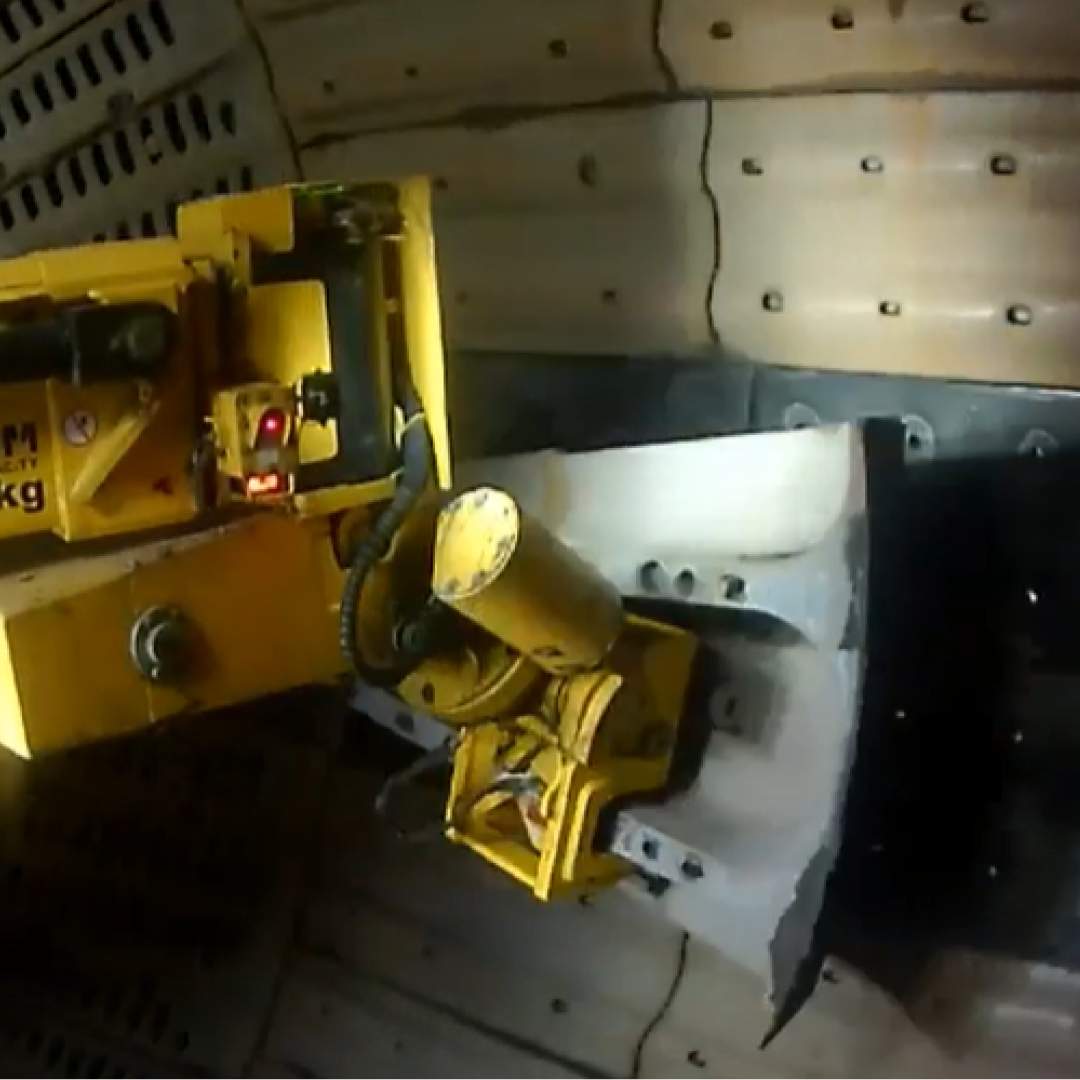

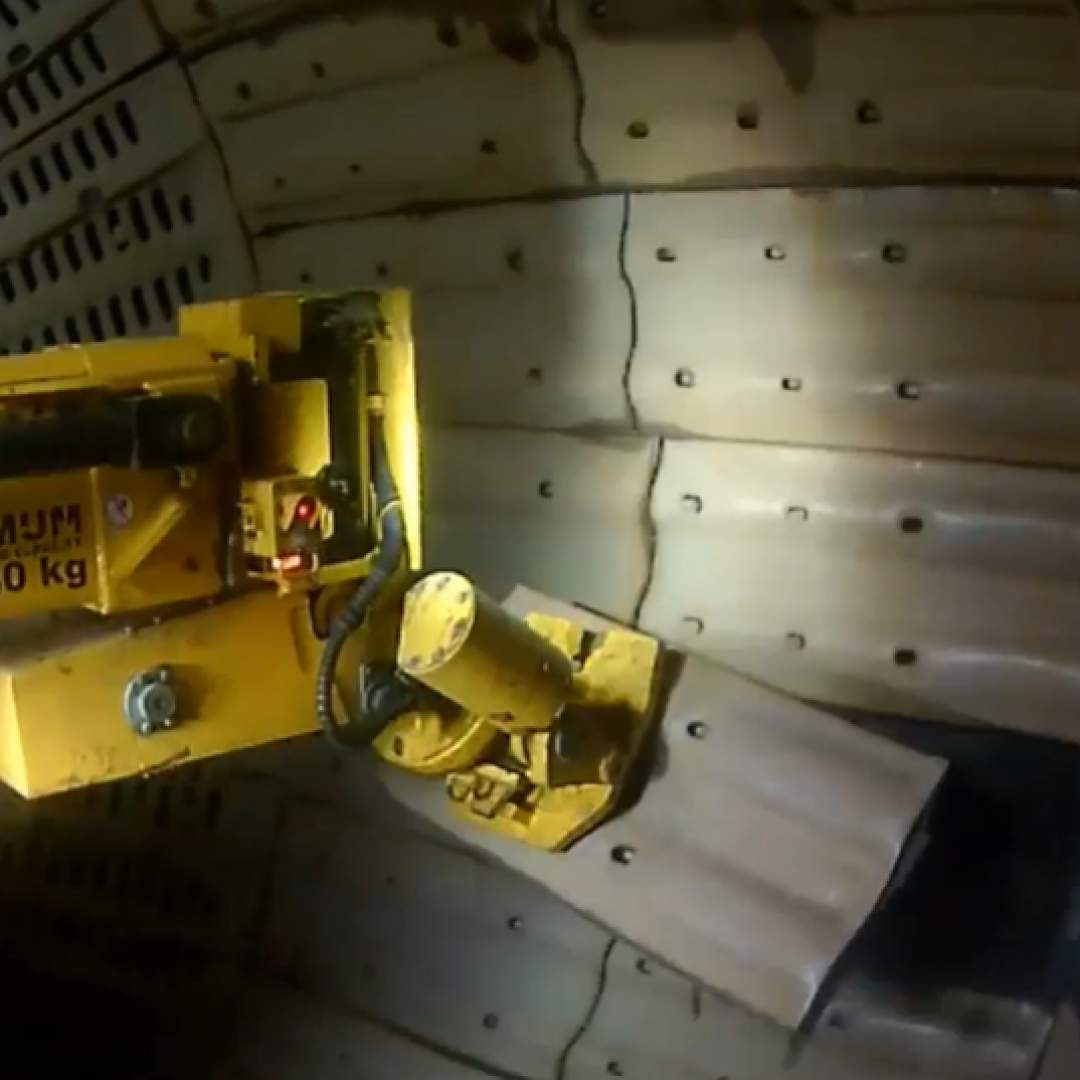

Bradken’s MillSafe Worn Liner Removal with RME INSIDEOUT™ Technology enables liners to be removed directly from mill wall without personnel required inside the mill.

MillSafe Worn Liner Removal System Main Features

Unique Design

Bradken liner design and worn profiles are taken from our Vision Wear Reporting (VWR) wear data for tool accuracy and for positive engagement.

Productivity

Reduces mill operation downtime.

Eliminates one complete step in the reline process.

Efficiently removes the liners from the mill shell.

Safety

Removes people away from known hazardous zones inside the mill during the liner removal process.

Reduces exposure to confined space.

Benefits

Improves safety outcomes.

Prevents the worn liners from falling onto the new liners already installed.
