Maximize Fixed Plant Operational Performance

Condition Monitoring Services

Bradken® offers expert Condition Monitoring services, providing comprehensive onsite inspection and reporting analysis for Fixed Plant assets.

Our highly skilled Condition Monitoring team utilise advanced techniques to assess the condition of your assets and deliver wear monitoring reports that contain asset conditions, performance analysis, comparison data, and recommendations.

By leveraging regular Condition Monitoring, Bradken® helps you gain valuable insights into liner performance, enabling us to recommend solutions that enhance your asset's campaign life and improve operational maintenance scheduling.

Maximize Your Plant’s Performance with Bradken® Condition Monitoring Services

Bradken® Condition Monitoring Services

Inspections are carried out on Fixed Plant Assets by Bradken® personnel during site shutdowns to generate a report on the condition of the assets for review. If Bradken Insite® is used the data can be interactive and can include campaign history. Changeout bill of materials is included in each report.

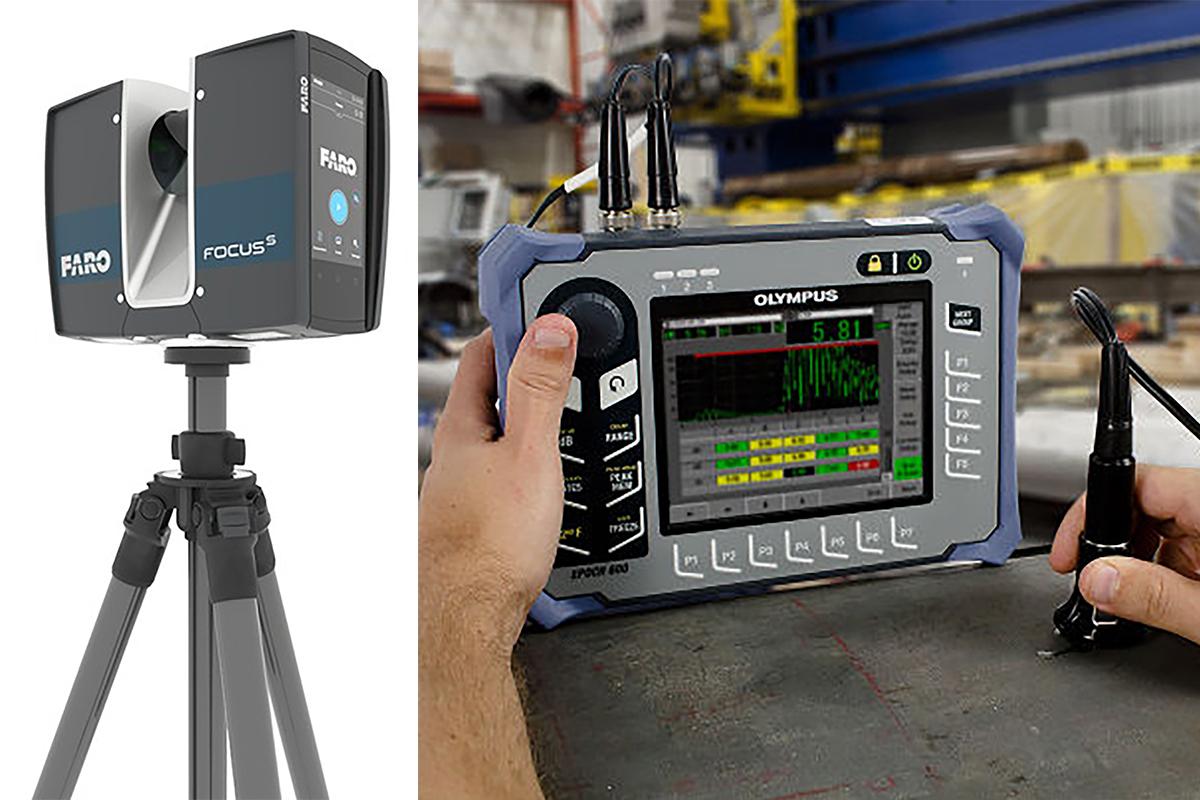

Measurement Options

  • 3D laser scan of asset – opportunity to be done without personnel entry​

  • Ultrasonic measurement and visual inspection of individual wear liners – requires personnel entry​

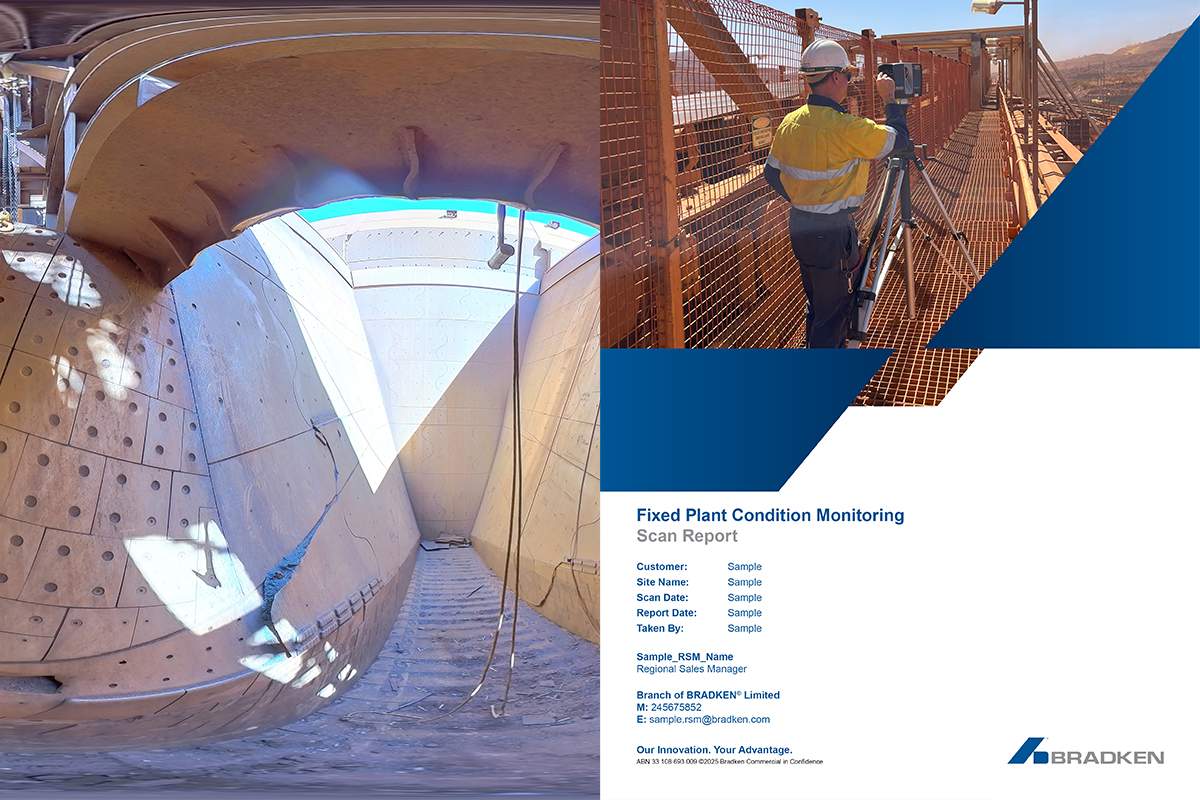

Wear Monitoring Report

  • Inspections can be added to Bradken Insite® or reported on separately​

  • Utilise the data to plan changeouts​

  • Bill of materials for changeout can be listed

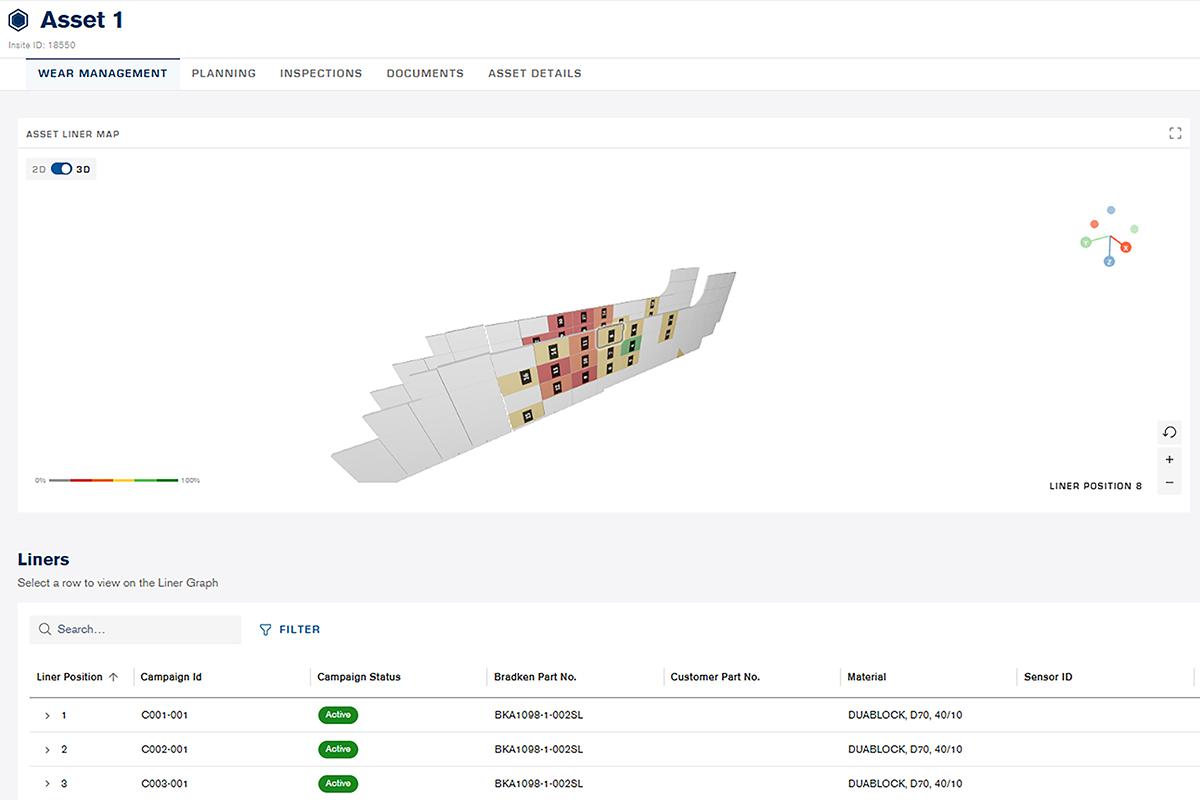

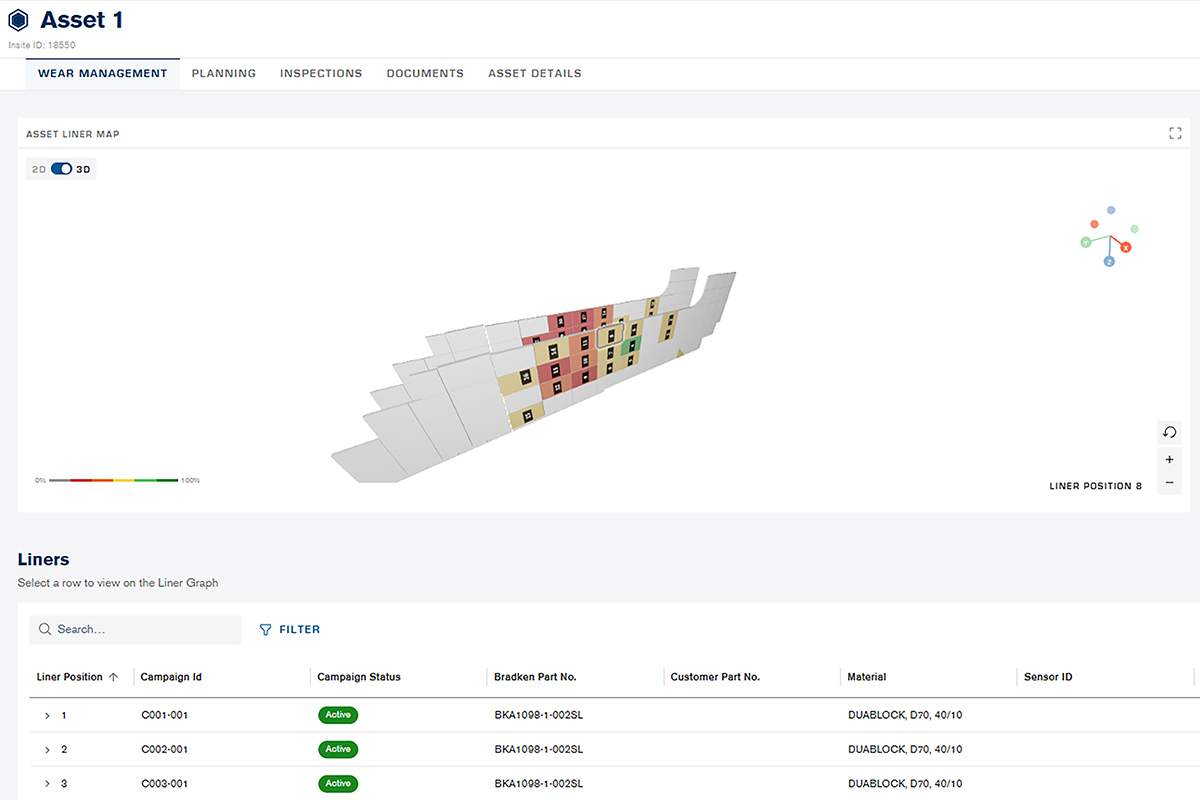

Bradken Insite®

  • Add in manual inspection results​

  • Predictive Wear analysis​

  • Inspections aligned with site shut schedule

What is Condition Monitoring?

It refers to on site inspection and reporting services for Fixed Plant assets, the inspections are performed during a plant shutdown. There are 3 main types of inspections:

Visual Inspections

Using long selfie sticks, 360-degree cameras, conventional cameras, and lighting.

It is the quickest and most common type of inspection due to the minimal access required.

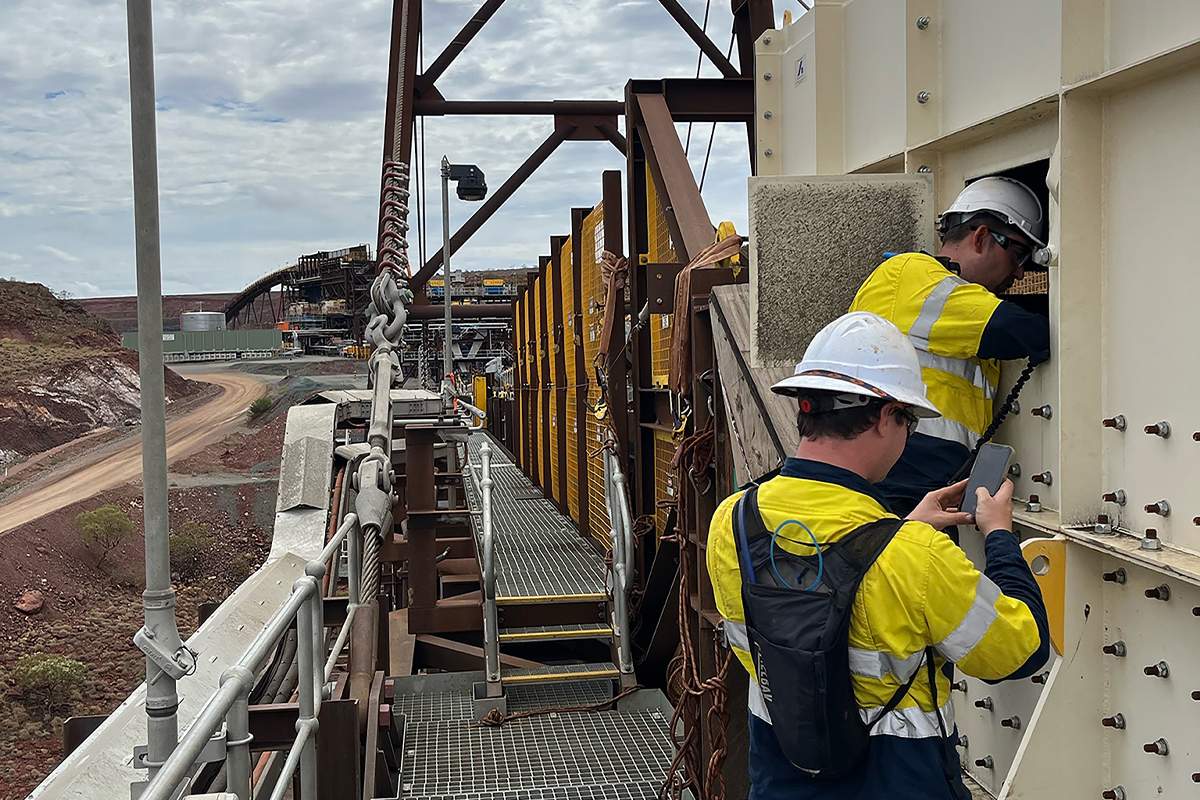

Ultrasonic Thickness Testing

Non-destructive thickness testing of liners on site, relies on access to the inside of assets.​

It is the most accurate of all 3 methods of inspection.

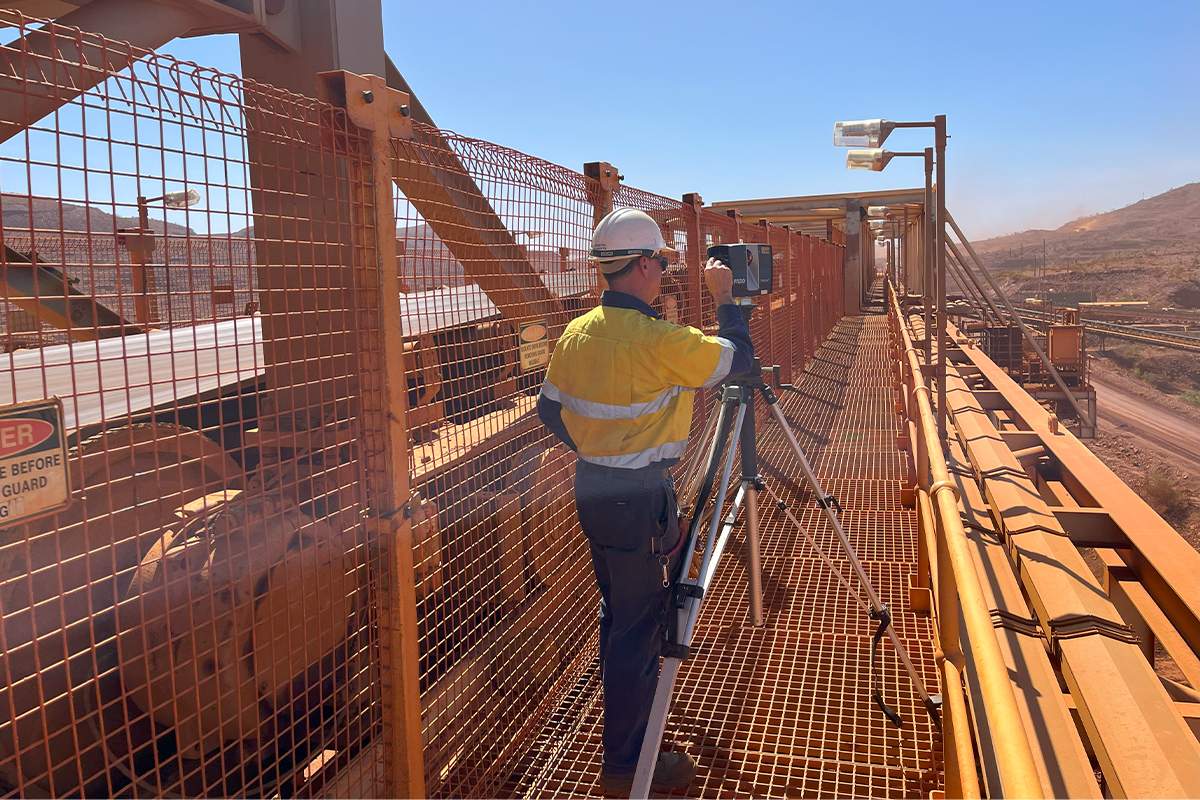

3D Scanning

Typically used for large assets such as bins and hoppers that would otherwise require scaffold or rope access for thickness measurements.

It requires a base scan with known liner thicknesses.

Customer Value

Provides Knowledge on Liner Performance in Fixed Plant Assets: Information obtained and collated during the inspections, monitoring of the performance of the wear liners in your assets. At regular intervals, building to a full story over time, Bradken® Condition Monitoring personnel can assist you to understand the behaviour and performance of the wear liners in your Fixed Plant assets.​
Supplies Immediate Feedback: Immediate feedback from the Bradken® onsite team to the site personnel of any issues that may need urgent attention during the current shut.​
Provides Wear Monitoring Report: Each Asset inspected will have a detailed wear monitoring report that outlines the current state of the liners, any issues, any recommended actions to get to the next shut, and if needed, a suggested list of liners to replace. Images taken during each inspection will be provided in the report and be utilised to compare asset performance between shuts.​
Assists Maintenance Planning: Should any liners be nearing the end of their life, the report will list your part number and Bradken®'s – so that replacements can be quoted, ordered and delivered, in time for the next shut access to that asset for liner changeout.​
Identifies Higher Wearing Zones: Regular condition monitoring provides information on areas of concern. These may move within the asset over time as site conditions change.​
Becoming Your Trusted Wear Liner Partner: By utilising regular Condition Monitoring Bradken® supports our customers by obtaining better insight into liner performance, which allows Bradken® to propose and recommend alternate solutions that may provide your assets with an improved campaign life.
