Ceramic Wear Solutions

Vulcabrix® Product Range

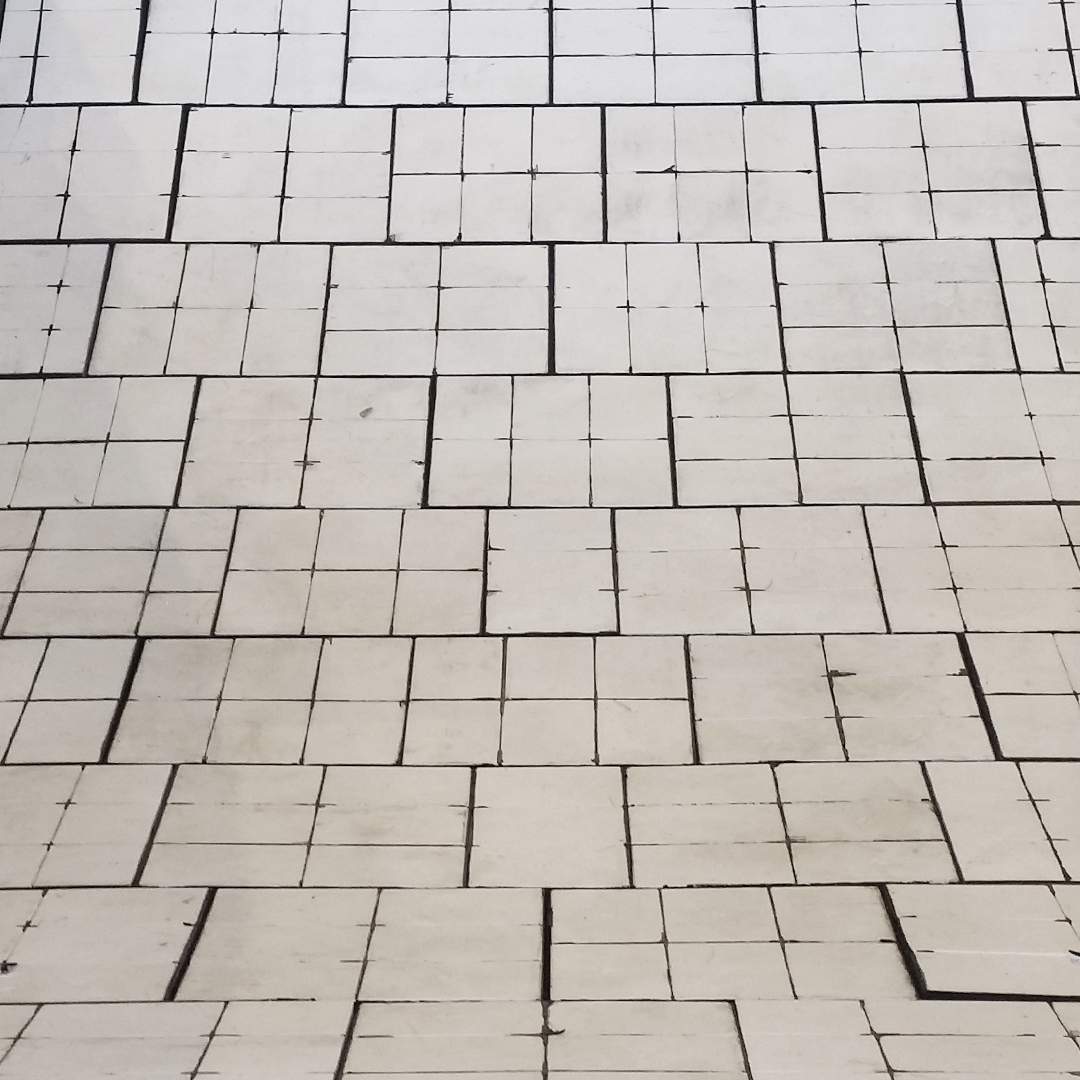

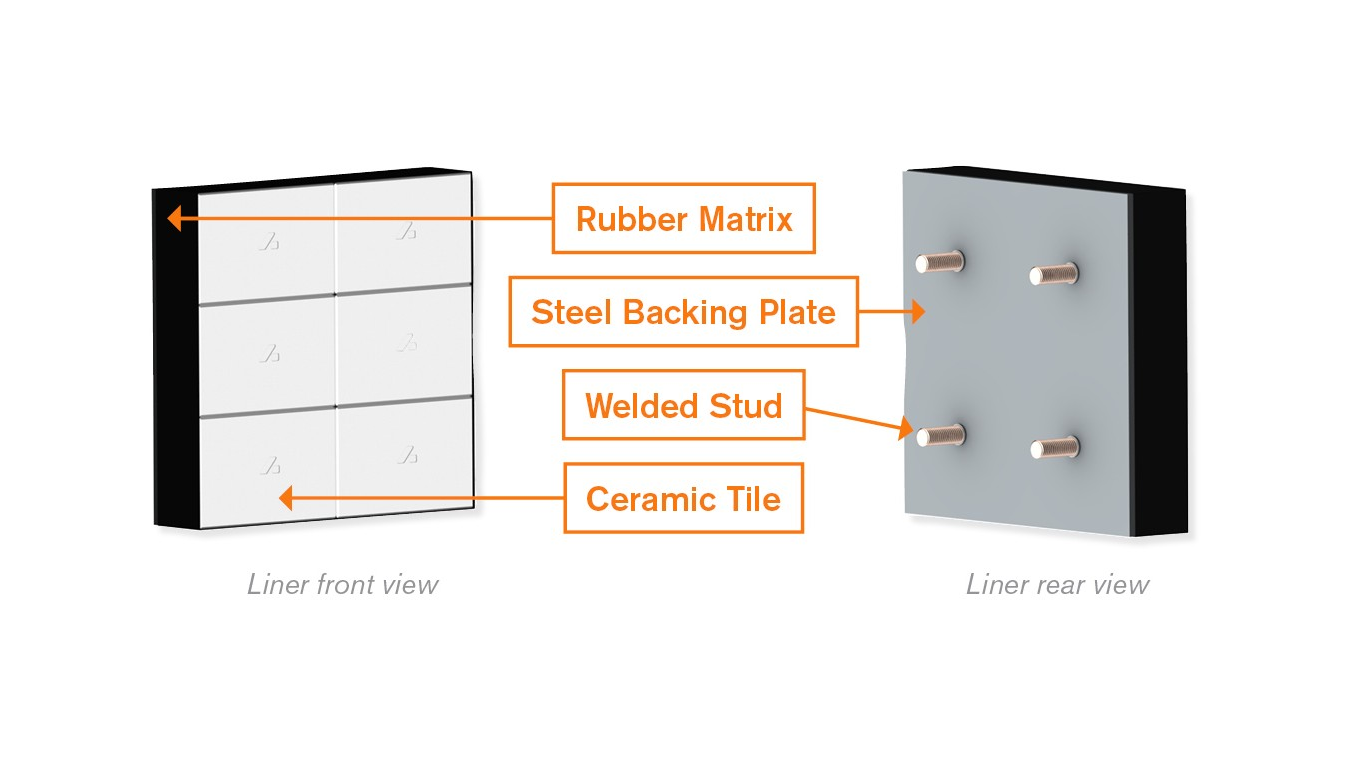

Developed using unrivalled technical expertise and experience, Bradken is excited to present our Vulcabrix® range of ceramic rubber composite liners. Vulcabrix® combines wear resistant ceramic tiles, an impact absorbing rubber matrix and a steel backing to create a lightweight high-performance wear liner for bulk material handling applications.

Vulcabrix® Origin 92

Quality Alumina ceramic liners providing cost-effective performance. Suitable for high wear areas with low to moderate impact.

Vulcabrix® Advanced 92

High Quality Alumina ceramic liners providing market leading performance. Suitable for extreme wear areas with low to moderate impact.

Learn More

Vulcabrix® ZTA

High Performance Zirconia Toughened Alumina ceramic for higher impact applications. Suitable for extreme wear areas with moderate impact.

Learn More

Vulcabrix® ARZ

Alumina Reinforced Zirconia, the ultimate choice when only the best will do. Suitable for extreme wear and greatly enhanced impact resistance.

Vulcabrix® Range

The Vulcabrix® Benefits

Along with their great abrasion resistance, Vulcabrix® composite liners are less than half the density of conventional metallic lining materials, allowing thicker, and longer lasting liner materials to be used in weight critical applications. The low-density material also aids in minimising liner mass, improving liner manual handling safety during installation.
With the integrated steel backing plate, Vulcabrix® can use welded studs or one-sided Bradken ChuteSafe® fasteners for quick and secure attachment to assets. All Vulcabrix® grades can be customised with, unique shapes, bevels and edge protection.

The right grade can be selected to maximise performance in the application. Exceptional bond strength between tile and backing plate.

Full range of products to suit all applications and budgets. Custom sizes, shapes, optional edge protection and bevelling.

Continuously batch tested for abrasion resistance and mechanical properties.

Short lead times with global manufacturing options.

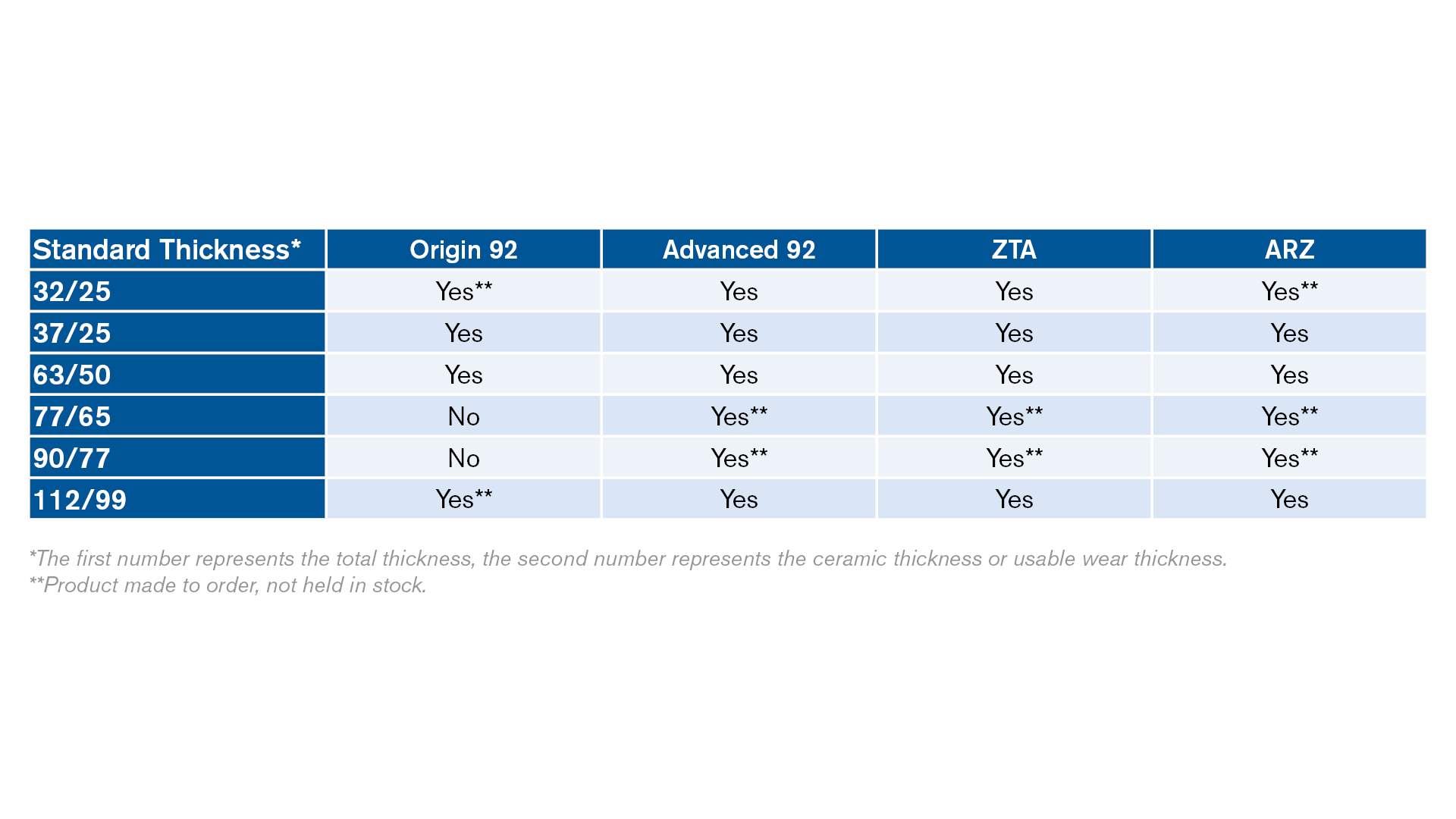

Standard Thickness Availability

Standard Liner Size

300*300

300*150

452*300

452*150

Ceramic Liner Features
